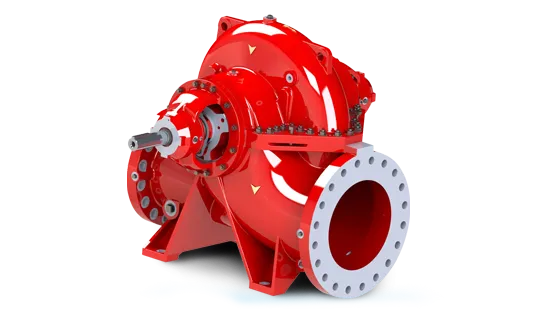

Split Case Fire Pumps

Split case centrifugal pumps feature a single double suction or two single suction impellers supported between bearings. The casing is split axially, with opposing suction and discharge flanges, greatly simplifying maintenance.

Specification

Working Pressure

200 psi (standard) or 250 psi (optional)

Special Finishes

Epoxy Coated - Red (standard) or Epoxy Marine Finish, All Colors (optional)

Piping Materials

Brass (standard) or Stainless Steel 304 (optional) or 316, Carbon Steel, 90/10 CuNI (optional)

Customer Connection Points

All Flanged (standard) or Flanged/Grooved, Threaded (optional)

Pumps - Positive Displacement

Ductile Iron Vane w/Internal Relief Valve (standard) or Ductile Iron Bronze Lined Gear Pump, Bronze UL Listed Gear Pump (optional)

Pump Drivers

Electric Motor (standard) or Diesel Engine w/ Fuel Tank, Water Motor (optional)

EIectric Motor Enclosures

ODP (standard) or TEFC, EX Proof, IEEE (optional)

EIectric Motor Voltages

3/60/460 VAC (standard) or 3/60/230 VAC, 3/50/380 VAC, 3/50/415 VAC (optional)

Pump Controller Types

Limited Service 10-30 HP, Full Voltage 30 HP and Up (standard) or Full Voltage, Industrial Starter (optional)

Pump Controller Accessories

None (standard) or Transfer Switches, Purge Systems, Releasing Panels (optiona)

Pump Controller Enclosures

Nema 2 (standard) or Nema 4, Nema 4X, Ex Proof - Industrial Starters Only (optional)

Reserve Pump - Any Style

No (standard) or Yes (optional)

Ratio Controller

Wafer Style (standard) or Flanged Style (optional)

Ratio Controller Size (2",3",4",6",8")

Any Based on Pump Size

Ratio Controller Proportioning %

3% (standard) or 6%, 2%, 1%-6% Metering Valve (optional)

Additional Ratio Controllers

No (standard) or Yes (optional)

Valve Types

Full Port Ball Valves w/ Lockable Handles (standard) or Globe, Gate, Butterfly (optional)

Valve Actuation

Manual (standard) or Electric, Pneumatic, Water Powered (optional)

Valve Supervision

Visual/Lockable (standard) or Tamper Switches (optional)

Performance Supervision

Yes (NFPA) or Pressure Switches, Flow Meters, Transducers (optional)

Inlet and Discharge Piping Spools

No (standard) or Yes (optional)

Integral Foam Concentrate Tank

No (standard) or Yes (optional)

Custom Designs to Customer Specs

No (standard) or Yes (optional)

Additional Pumps

No (standard) or Yes (optional)

Additional Motor Controllers

No (standard) or Yes-w/Automatic Transfer and Lockout (optional)
